Application:Directional Well Drilling

Features:Screw drilling tool drive shaft assembly parts

Material:AISI Steel

Standard: API & ISO

Warranty:3 Months

Usage: 300 Hrs

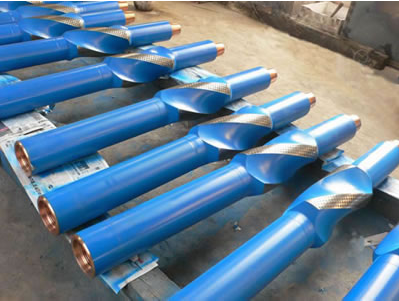

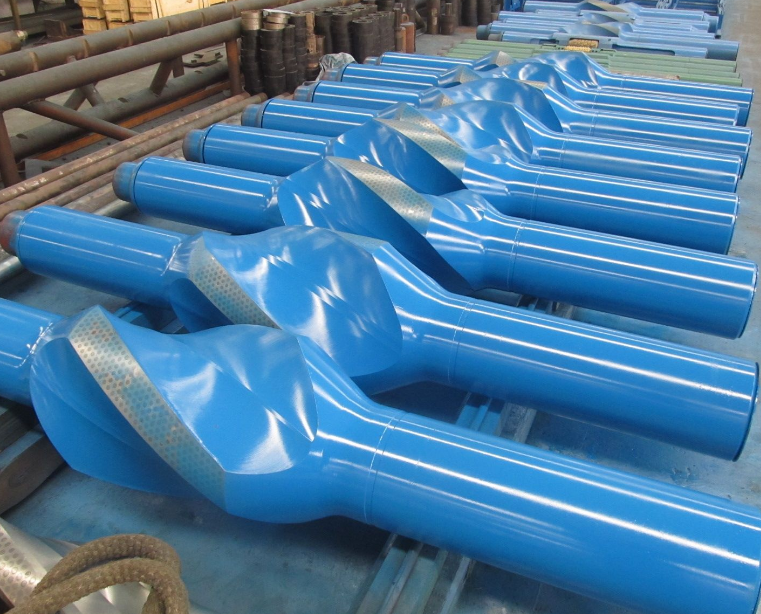

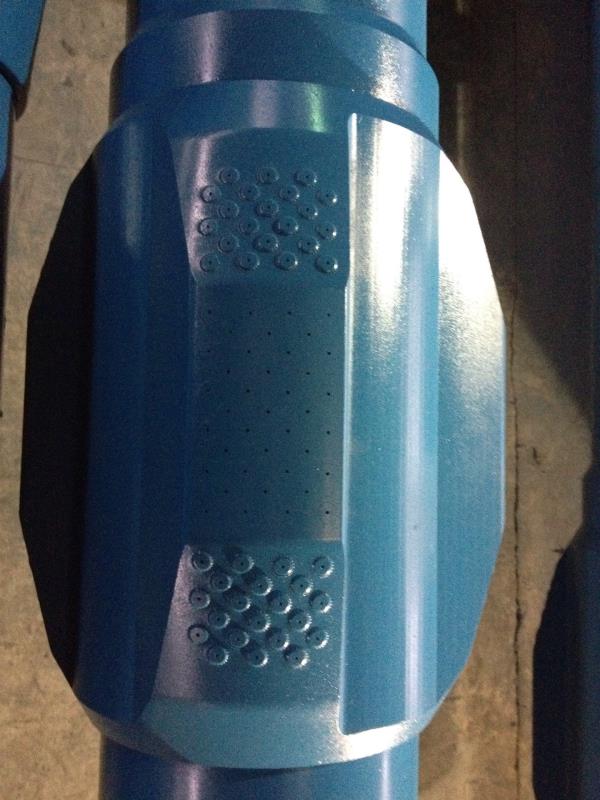

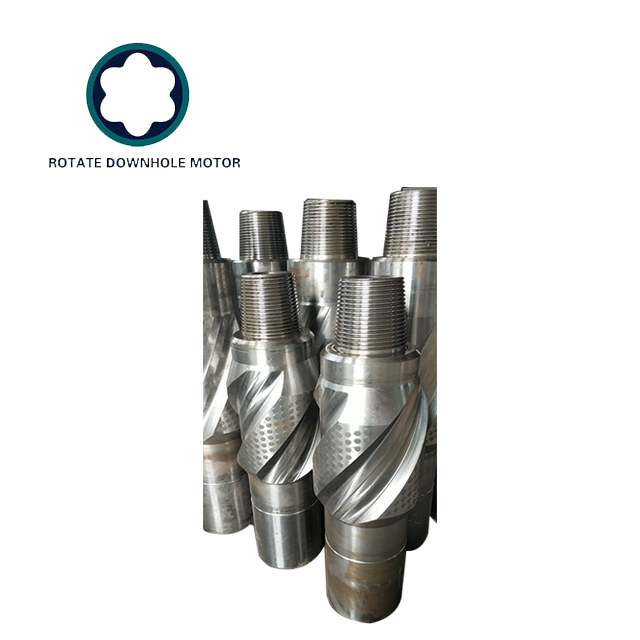

ROTATE Integral Blade Stabilizer (IBS) is a one piece rotating stabilizer which can be placed near bit or higher in the drill string. It is a one piece construction manufactured from high strength alloy steel (non-magnet steel optional), that prevents differential sticking of the drillstring by stabilizing the BHA and keeping drill collars and drill pipes away from the borehole wall.

This reduces vibration, drill pipe whirl, and wellbore tortuosity; furthermore, the stabilization maintains drilling trajectory whether drilling straight, horizontal, or directional wells.

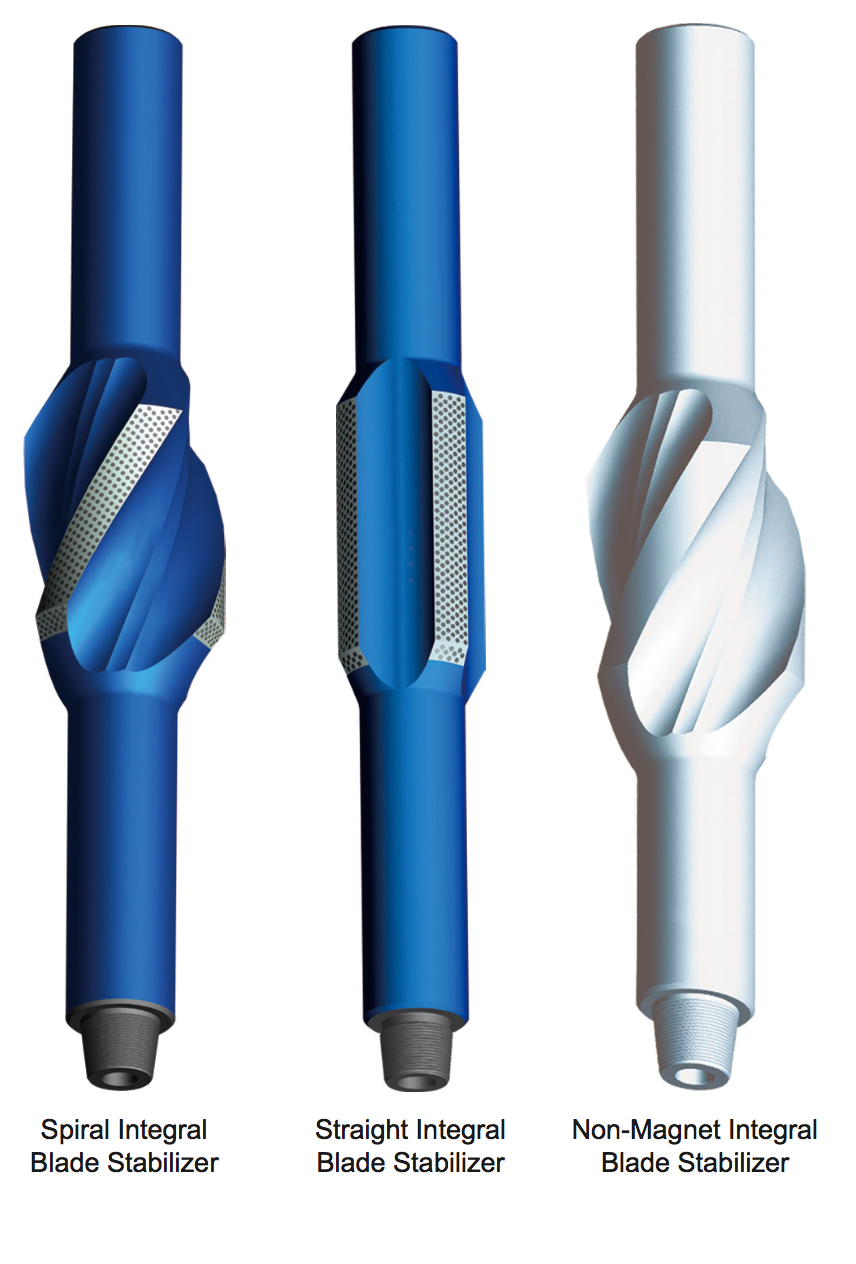

ROTATE offers several options for IBS, in both alloy steel and non-magnet materials:

Spiral Integral Blade Stabilizer;

Straight Integral Blade Stabilizer;

Non-Magnet Integral Blade Stabilizer;

When ordering please specify:

Hole size or required blade O.D.;

Number of blades required (3 or 4 are standard styles);

Straight or spiral blades;

Hardfacing type ;

Top and bottom connections;

Body diameter required;

String or near bit application;

Alloy steel or non-magnet materials ;

Special features SRG on connections, bored for float etc.

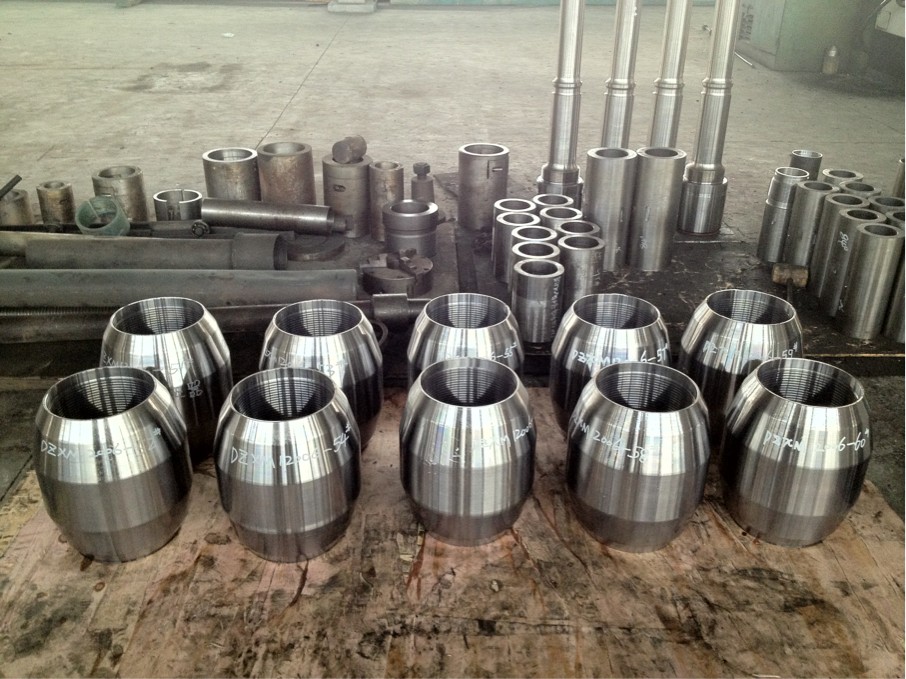

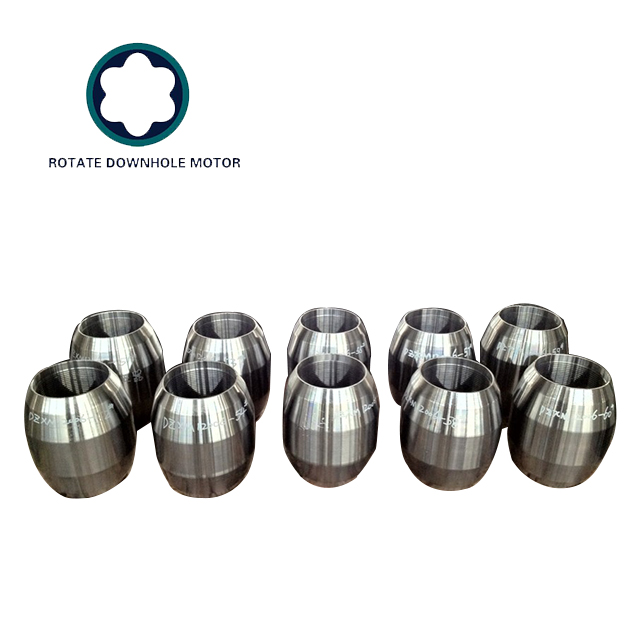

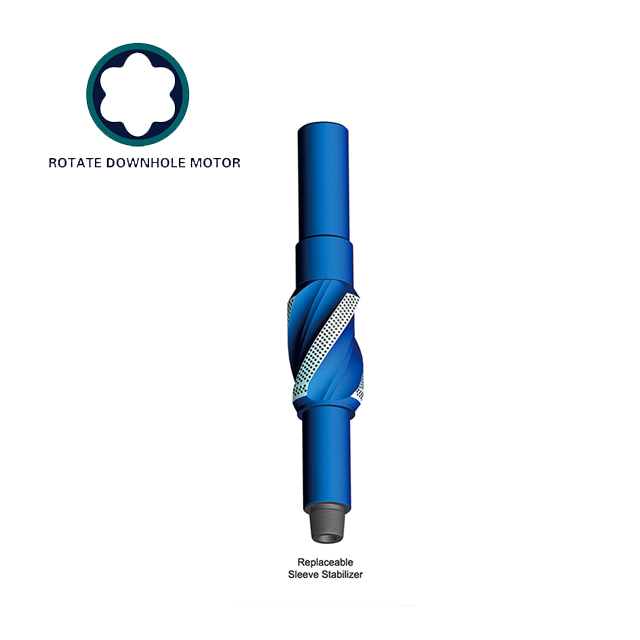

ROTATE replaceable sleeve stabilizer consists of an integral mandrel and a sleeve.

One mandrel series can be equipped with different sizes of sleeve for several hole

sizes. In order to match the drilling conditions, the sleeves can be easily changed

on the rig floor during changing of hole size or wear surface.

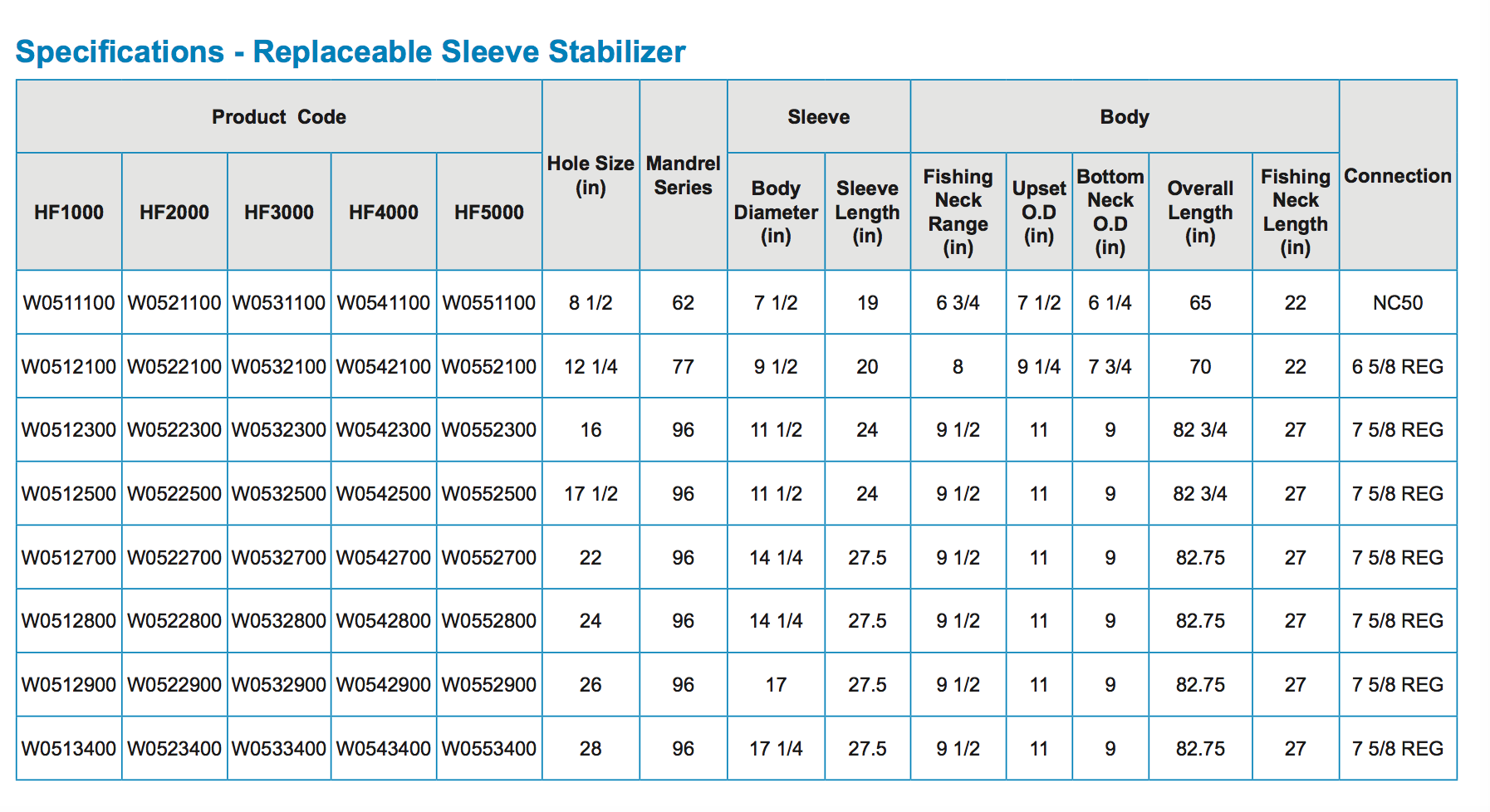

When ordering please specify:

Mandrel series and sleeve O.D.;

String or near bit application;

Top and bottom connection;

Hardfacing type.

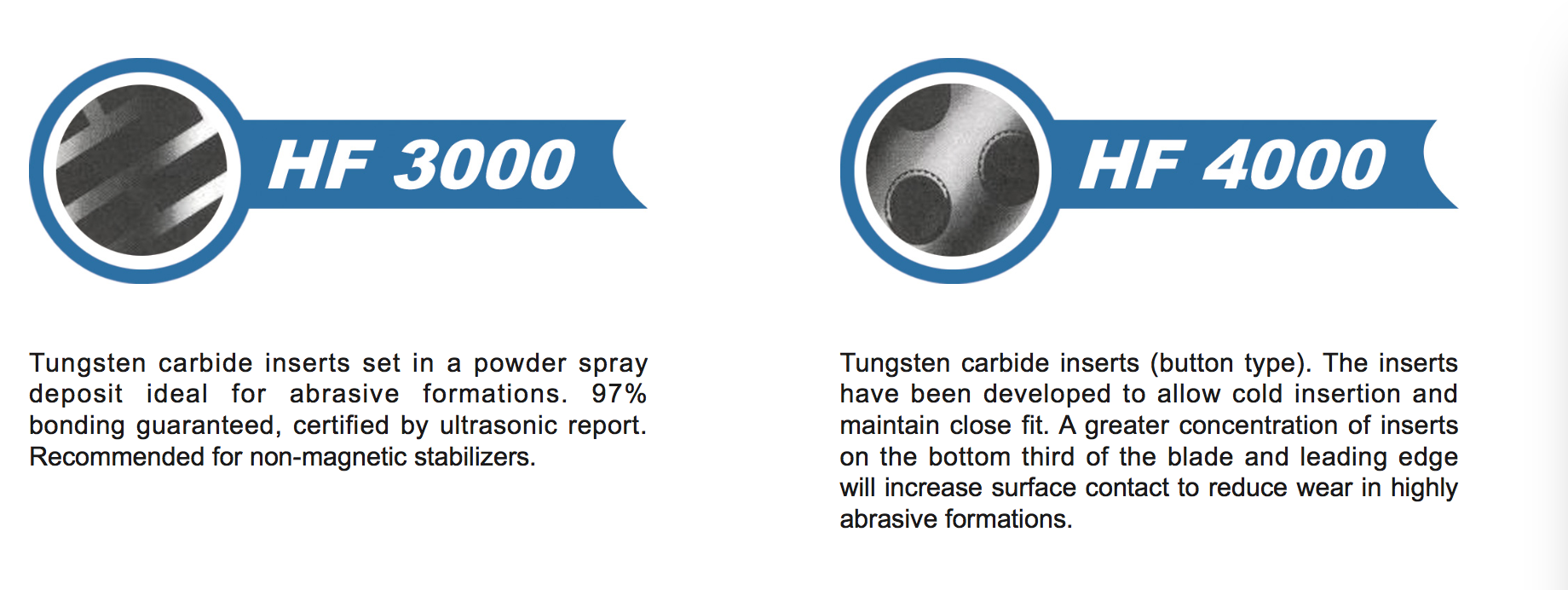

We offer a complete range of Hardfacing to suit all drilling conditions. All ROTATE Stabilizers can be banded with the following hardfacings.
