Breakout Unit

Application:Hydraulic equipment

Features:Hydraulic Maintenance Equipment

Material:AISI steel

Standard: API & ISO

Warranty:3 months

Usage: Disassembly, assembly and maintenance equipment of various screw drilling tools

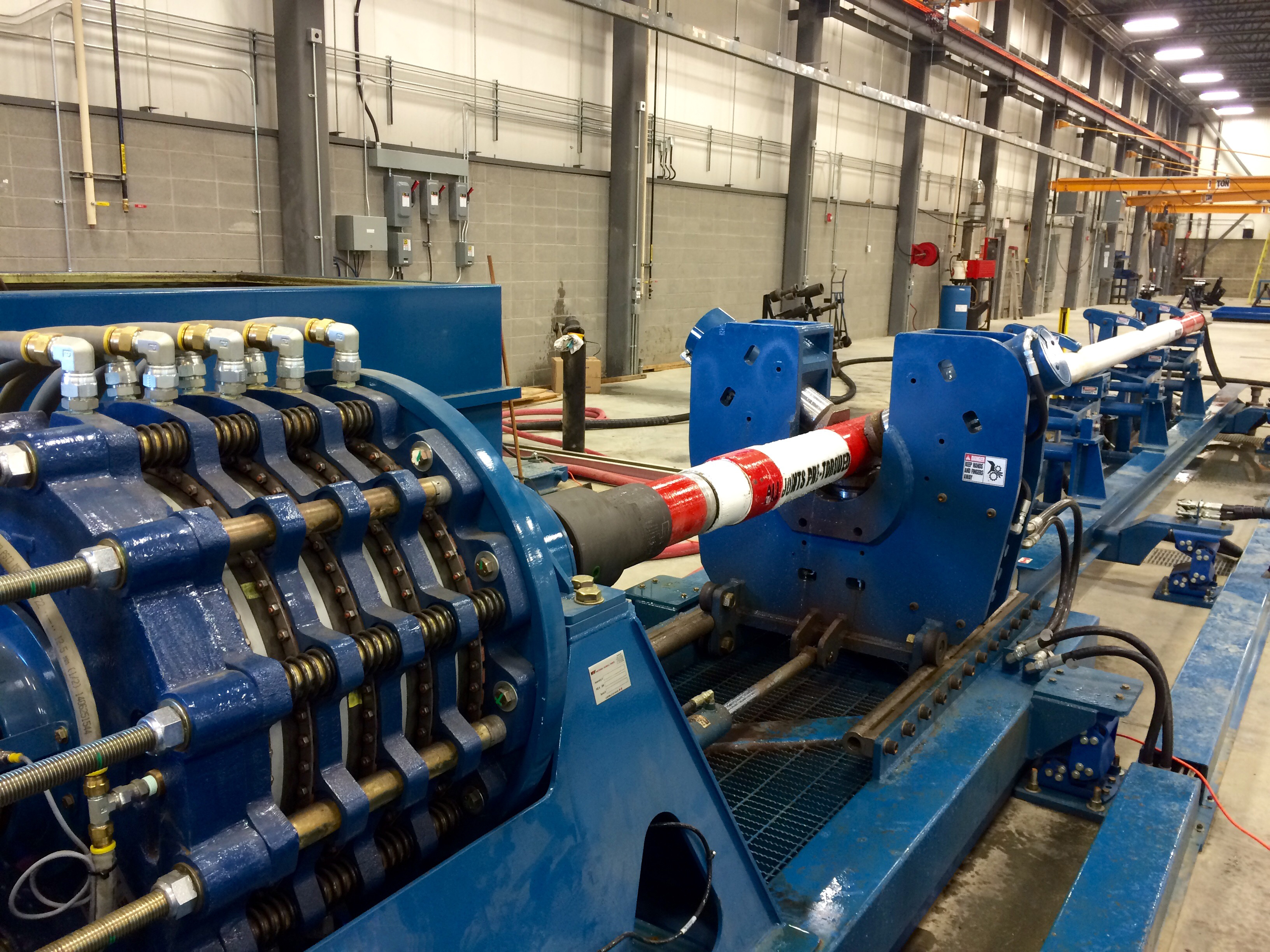

Breakout Unit is important for make-up, break-out and maintenance of drilling tools and motors in both the workshop and drill sites.

CZJ-I Hydraulic Breakout Unit is designed and manufactured to cater to the needs of both China and overseas rig operators in the petroleum industry. The design was awarded the status of New High-Tech Product and has obtained several Patented Protection Rights in China. CZJ-I Hydraulic Breakout Unit’s proven technology has been well received by the international market.

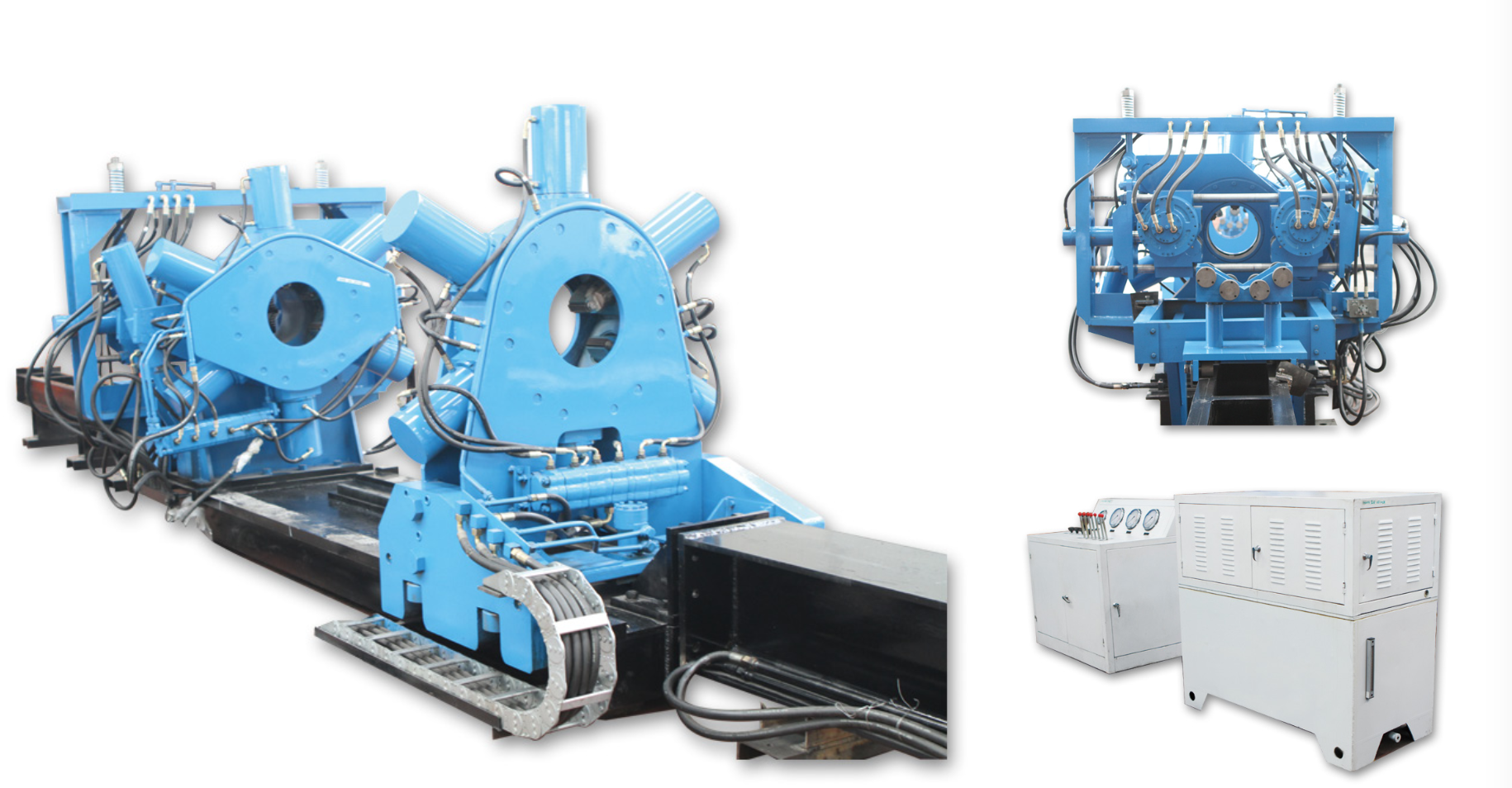

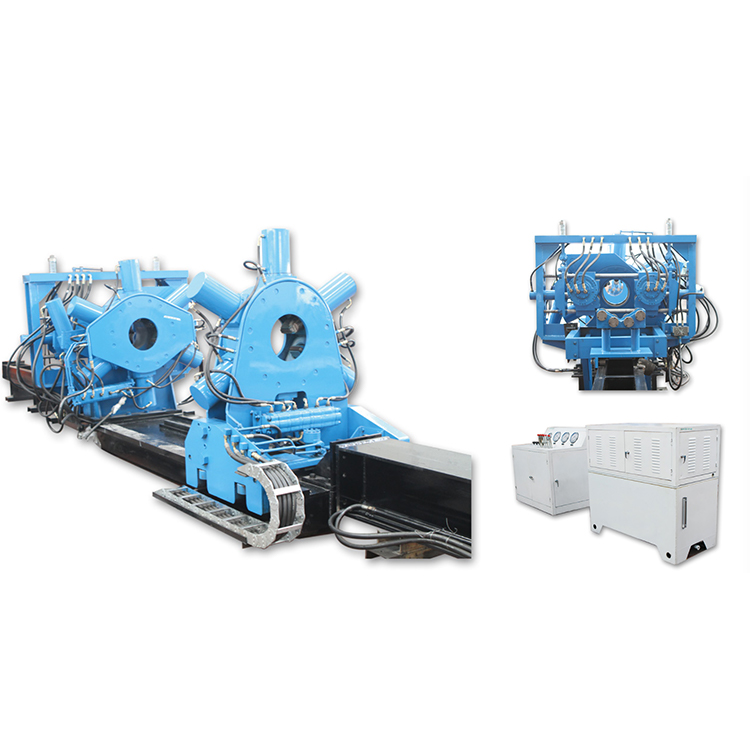

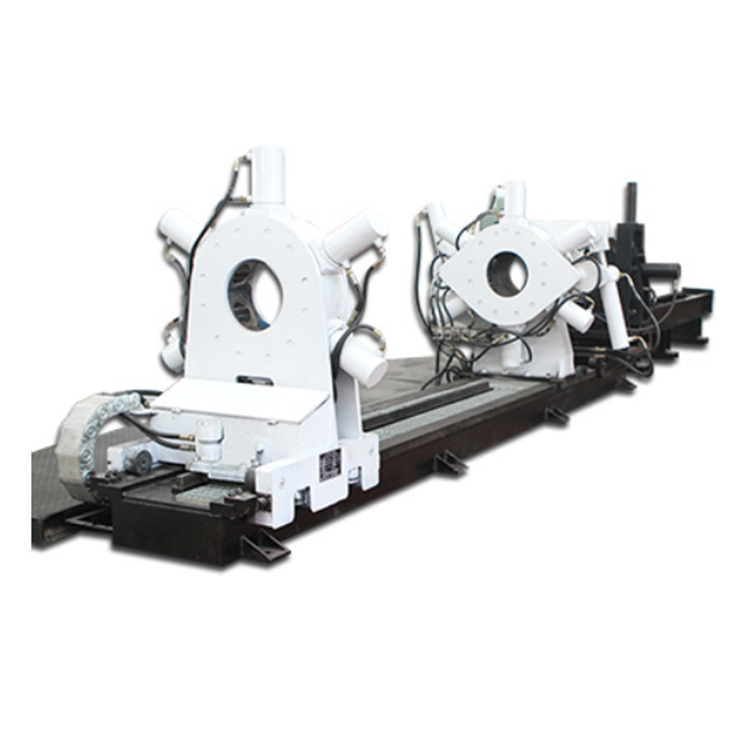

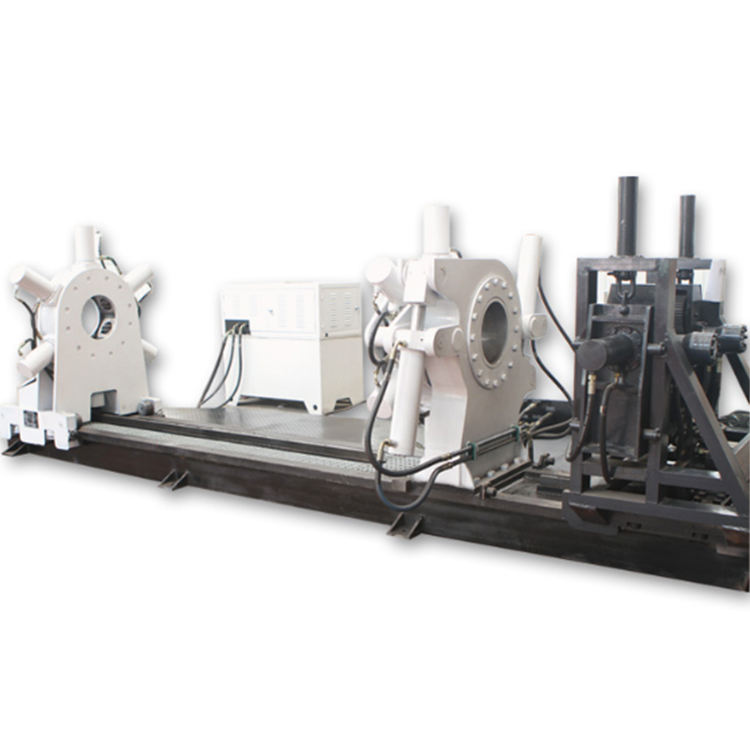

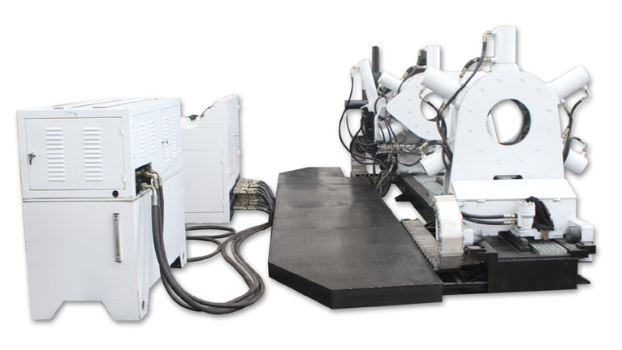

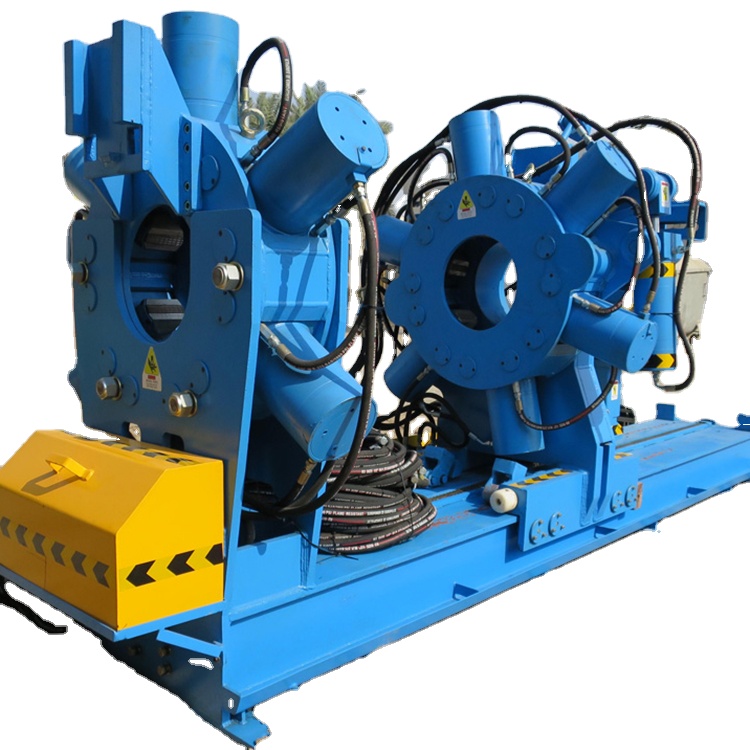

CZJ-I Hydraulic Breakout Unit is a highly automated and self-contained hydraulic make-up and break-out machine. It has high make-up/break-out torque, supports a wide range of pipe diameter and is specially designed to reduce the risk of slippage during make/break operations.

CZJ-I Hydraulic Breakout Unit comes with the option of Hydraulic Push/Pull Assembly and Hydraulic Spinner (Quick Rotary) Assembly. The Push/Pull Assembly supports axial loading where push/pull force is required and is generally used in the maintenance of mud motors to insert or remove rotors from stators. The hydraulic spinner ensures quick spin up / spin out of low torque shouldered connections.
